H40-52XD-CH

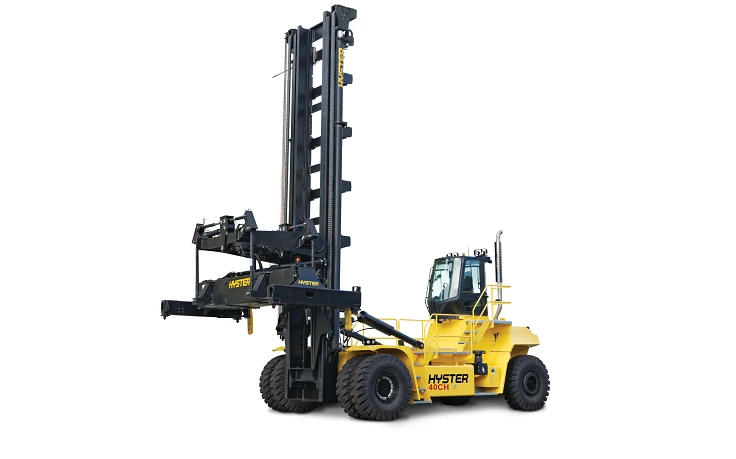

H40-52XD

Laden Container Handler

The Hyster® laden container handler delivers unmatched first row box-rates.

Models
H40-52XD
Capacity
40000-52000kg
  • Operator-friendly cabin
  • High-performance powertrain
  • Fast spreader engagement
  • Energy-efficient
  • Enhanced optimization
Industry Best

Designed for operations where fast first row box rates are essential. Due to their superior speed, these machines also provide an alternative to ReachStackers when second and third row container storage is not required.

Start a Quote

Interested in more information on this lift truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

The Hyster® laden container handler performs container shunting operations at exceptional speeds, reliably and with a low cost of operation.

These laden container handlers feature the robust Hyster® mast and spreader and can stack laden containers three, four and five high in the first row offering fuel savings of up to 20%.

Operator-friendly cabin

The new ergonomically design high visibility cab puts greater productivity within easy reach.
Equipped with an armoured glass top window, curved front and rear windows and steel doors with tempered glass, the new operator cab provides excellent all-around visibility. Inside the cab there is more space with the largest entry area in the industry, more control with a full-colour screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.

High-performance powertrain

The robust, high-performance powertrain has built-in engine and transmission protection systems providing maximum reliability and a low total cost of ownership. The heavy duty industrial use engine comes with a cast iron cylinder block and no HT (high tension) wires, distributor caps or rotors. Super quick glow plugs allow the engine to start quickly and reliably under cold conditions, the cold start device delivering a cleaner exhaust by advancing the fuel injection timing based on water temperature. while emissions have been reduced by controlling fuel injection timing according to engine load.


Performance optimization developments are included such as cooling on demand, load sensing hydraulics (power on demand), RPM management and alternate engine idle speed to help further reduce the total fuel consumption in most applications.

Fast spreader engagement
Dolore irure labore sed deserunt quis in occaecat aliquip esse. Consequat, ea enim exercitation ullamco aliquip sunt aliqua, deserunt quis. Est mollit deserunt nulla dolor velit sint aliqua, lorem quis. Dolore adipisicing sit ut sint laborum, in dolor deserunt reprehenderit. Culpa nostrud et ea duis dolore deserunt in commodo excepteur. Id ullamco aliquip voluptate enim in proident, qui anim adipisicing. Labore velit culpa mollit eiusmod ex est duis quis voluptate. Voluptate consectetur commodo cillum mollit laboris consequat, esse enim minim. Voluptate mollit sed occaecat nulla in velit et sunt anim. Id enim nulla adipisicing ea exercitation dolore minim sint fugiat
Energy-efficient

The truck’s ECO-eLo performance mode intelligently reduces energy consumption without affecting performance. Oil-immersed brakes on the drive axle feature oil cooling for durability and are virtually maintenance free. The drive axle itself has reinforced spindles offering excellent sideways stability and long-term durability thanks to the strong end reduction shafts and gears. The wide heavy duty steer axle features a double acting, single steering cylinder with non-adjustable tie rods and has low maintenance requirements.

Enhanced optimization

Trucks feature performance optimisation developments such as cooling on demand, load sensing hydraulics, RPM management and alternate engine idle speed to help further reduce the total fuel consumption in most applications.

Model Load Capacity Load Centre Lift Height Turning Radius Overall Width Weight Engine Transmission Stacking Height 1st Row Load Capacity 1st Row
H40XM-16CH4 35300kg 1400mm 12034mm 7875mm 4200mm 62419kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 4 / 4 35300
H52XM-16CH6 36000kg 1509mm 17830mm 8015mm 4900mm 82443kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 6 / 6 36000
H44XM-16CH4 39300kg 1400mm 12034mm 7875mm 4200mm 65219kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 4 / 4 39300
H52XM-16CH5 40000kg 1509mm 17930mm 8015mm 4200mm 79450kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 5 / 5 40000
H52XM-16CH5 40000kg 1509mm 14930mm 8015mm 4200mm 78512kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 5 / 5 40000
H48XM-16CH4 40000kg 1400mm 12034mm 7875mm 4200mm 66919kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 4 / 4 40000
H50XM-16CH5 40000kg 1509mm 14930mm 7875mm 4200mm 76473kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 5 / 5 40000
H50XM-16CH5 40000kg 1509mm 14930mm 7875mm 4200mm 75535kg Cummins QSL 9L / QSM 11L Diesel Dana S.O.H TE 27 5 / 5 40000
