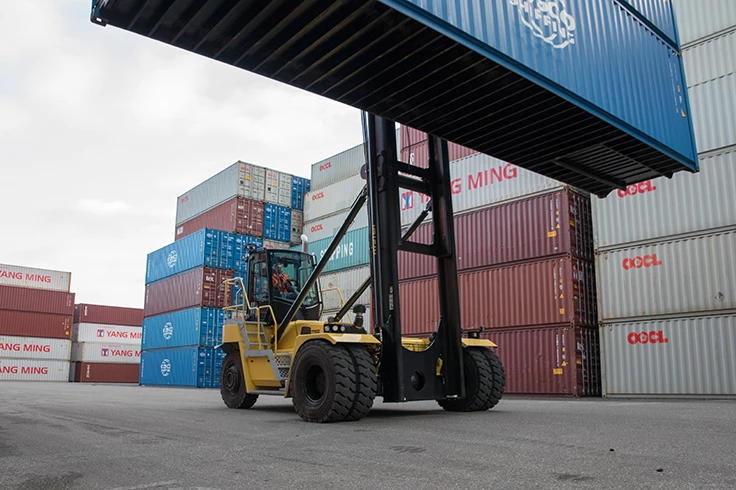

Empty Container Handler
RELIABLE AND FAST CONTAINER HANDLING
- Models
- H180-230XD-EC/D
- Capacity
- 18000-23000lbs
Designed for use in the ever growing, fast paced container industry, where every yard must bring down the cost per box moved to stay competitive.
- Single and double handling spreaders
- Heavy-duty productivity
- Serviceability
- Optimized powertrain
- Ergonomic cab
CONTAINER STACKING UP TO 9 HIGH
A comprehensive selection of single and double handling spreaders are available, featuring vertical twistlocks or hook & side clamps, to suit your specific application. These spreaders allow
operations to handle most common types of containers including ISO, WTP and domestic containers.
SINGLE AND DOUBLE HANDLING SPREADERS

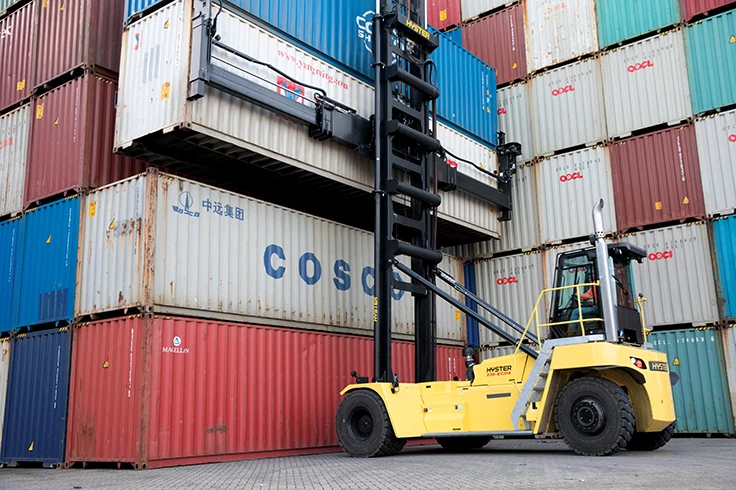

Hyster empty container handling solutions can help port operations reap time and cost savings by handling two empty containers simultaneously. The double-handling capability of the H180-230XD container handler provides particularly powerful advantages as organizations scale to handle growing demand while maintaining targets for efficiency and cost.
Hyster H180-230XD-EC/D container handling trucks deliver high productivity with 4-mode average speeds of 107 ft/min (0.54 m/s), competitive in the industry at rated laden container handling capacities.
For optimal performance and durability, the variable lap mast features:
- significantly lower load roller forces
- less mast deflection
- higher torsional rigidity
- heavy duty 2 chain system with large diameter sheaves
This design enhances structural strength, contributing to lower costs and reducing downtime.
Hyster trucks have been designed with the service technician in mind. Easy access to the engine, hydraulics and other major components are enabled with a large hinged hood and lift off front covers. The tip back cabin provides ample service access to components located under the cabin.
- Broad, slip resistant running boards
- Optional utility toolbox and storage compartment
- The hydraulic oil tank features a sight glass and magnetic drain plugs for ease of maintenance
- Clean hydraulic hose and electrical harness routing and clamping
The Tier 4 Final Cummins QSB 6-cylinder diesel engine delivers 231 peak HP and 770 lb-ft of maximum torque, featuring cooled exhaust gas recirculation (EGR) technology with selective catalytic reduction (SCR) and an integrated diesel exhaust fluid (DEF) delivery system.
Innovative selectable ECO performance modes, plus the 5-speed transmission and variable displacement pumps, offer excellent fuel economy.
On-demand hydraulics keep oil temperature lower to protect hydraulic components.
The ergonomically designed high visibility cab puts greater productivity within easy reach. Equipped with an armored glass top window, curved front and rear windows and steel doors with tempered glass, the operator cab provides excellent all-around visibility. Inside the cab there is more space with the largest entry area in the industry, more control with a full-color screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.
| Model | Load Capacity | Load Center | Lift Height | Turning Radius | Overall Width | Weight | Engine Type | Transmission |
|---|---|---|---|---|---|---|---|---|
| H180XD-EC7 | 18000lbs | 48in | 739 | 249 | 162 | 81377 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H180XD-EC6 | 18000lbs | 48in | 637 | 249 | 162 | 78392 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H190XD-ECD8 | 19000lbs | 48in | 745 | 249 | 162 | 90065 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H200XD-ECD7 | 20000lbs | 48in | 643 | 249 | 162 | 87012 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H200XD-EC8 | 20000lbs | 48in | 841 | 249 | 171 | 91463 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H200XD-EC7 | 20000lbs | 48in | 739 | 249 | 162 | 85755 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H210XD-ECD8 | 21000lbs | 48in | 745 | 249 | 171 | 92343 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H230XD-ECD8 | 23000lbs | 48in | 745 | 249 | 171 | 94461 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H230XD-ECD9 | 23000lbs | 48in | 847 | 249 | 171 | 97440 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
We would not be where we are today without one of the most professional dealer networks in the industry. We work hard to design and manufacture the best lift trucks, but it is our stellar dealers that bring it all together for you.
Dealers help at every step of the process
- Understanding your specific lift truck applications
- Recommending special features to improve your productivity
- Configuring the proper quotation
- Helping with financing options when required
- Prepping your truck for delivery after it leaves our factory
- Arranging for operator training
- Providing planned maintenance on your trucks
- Supporting National Accounts management
- Providing fleet management services, if needed
- Providing emergency service and parts
- Providing rental trucks at short notice
- Helping determine exactly when to purchase new lift trucks
The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Hyster supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at www.gsaadvantage.gov
MANAGE YOUR BIG ASSETS
LEVEL 1 TELEMETRY STANDARD ON BIG TRUCKS
Help promote safety & operator confidence, regulatory compliance, and improve operational transparency. Our cloud-based wireless monitoring provides actionable insights giving you a thorough look into your fleet’s day-to-day operations so your team can work smarter. And it's standard on Hyster high capacity ICE forklifts and container handlers and reach stackers.
