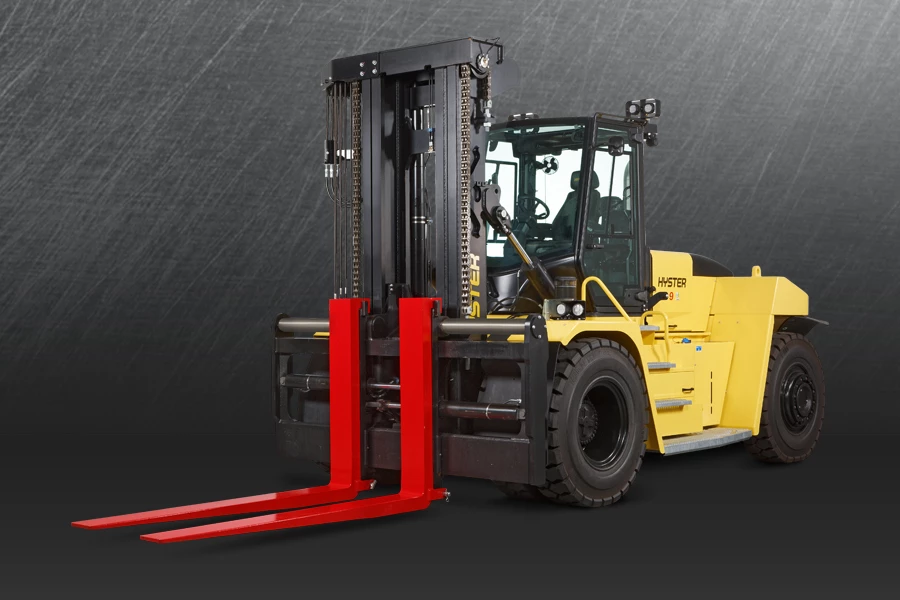

Heavy Duty Forklift Truck Pneumatic Tire
Big Trucks for Heavy-Duty Applications
- Models
- H400-450XD(S)36
- Capacity
- 40000-45000lbs
Depend on the power of Hyster® heavy-duty forklifts
- Robust design
- Excellent visibility
- Low cost of ownership
- Operator comfort
- Easily serviceable
Designed for long load centers, wide loads and heavy duty-cycle conditions
The mast, with robust mast channels, rollers, stub shafts and chain anchors, is designed to excel in heavy duty applications. The sturdy mast design for this truck series enables less mast deflections while offering a number of 2-stage mast options for a wide variety of applications in multiple industries.
Greaseable load rollers with roller bearings can provide years of dependable performance in the front end. Carriages are designed to have minimal capacity derate on sideshifting carriages, enabling the truck to provide close to full rated capacity under all operating conditions.
Available in short wheel base to deliver an optimum combination of compactness, nimbleness and agility for applications with space constraints requiring a tighter turning radius.
A low profile carriage enables a clear line of vision for an optimized view of fork tips. Forward visibility is uncluttered by the position of hydraulic valves, hoses or mast crossmembers with a clear view through the mast window. Canted hoses are arranged along the line of sight so the operator sees only one hose and has good visibility.
Curved, scratch resistant, tempered glass front and rear windshields, armored glass top window and steel-framed glass doors provide operators with excellent all-around visibility. On the exterior, sloping counterweights enhance visibility of steer tires for improved maneuverability and reduced tire gouging.
Fuel consumption is a key driver of the total cost of ownership for heavy duty lift trucks. Hyster high capacity lift trucks are engineered with integrated powertrain system and on-demand hydraulics to deliver low fuel consumption with high levels of productivity.
The engine design produces more power and torque using XPI high-pressure, common-rail fuel injection and variable geometry turbochargers. Advanced controls enable the engine to provide peak performance and operating efficiency while delivering great fuel economy and durability.
The ergonomically designed high visibility cab puts greater productivity within easy reach. Equipped with an armored glass top window, curved front and rear windows and steel doors with tempered glass, the operator cab provides excellent all-around visibility. Inside the cab there is more space with the largest entry area in the industry, more control with a full-color screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.
Hyster forklifts are designed with the service technician in mind. Gull-wing hoods provide quick access to key components, and daily checks don’t require tilting the cab. A tilting cab provides easy access to hydraulic components in seconds. Galvanized, broad, slip-resistant running boards foster quick daily checks, while a large access bay enables easy radiator cleaning. A hydraulic sight gauge makes for at-a-glance fluid level checks.
| Model | Load Capacity | Load Center | Lift Height | Turning Radius | Overall Width | Weight | Engine Type | Transmission |
|---|---|---|---|---|---|---|---|---|
| H400XD36 | 40000lbs | 36in | 275 | 194 | 115 | 59664 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H400XDS36 | 40000lbs | 36in | 275 | 194 | 115 | 61024 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H450XDS36 | 45000lbs | 36in | 275 | 207 | 115 | 65477 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
| H450XD36 | 45000lbs | 36in | 275 | 207 | 115 | 62893 | Cummins QSB 6.7L Diesel | ZF - 5WG211 |
We would not be where we are today without one of the most professional dealer networks in the industry. We work hard to design and manufacture the best lift trucks, but it is our stellar dealers that bring it all together for you.
Dealers help at every step of the process
- Understanding your specific lift truck applications
- Recommending special features to improve your productivity
- Configuring the proper quotation
- Helping with financing options when required
- Prepping your truck for delivery after it leaves our factory
- Arranging for operator training
- Providing planned maintenance on your trucks
- Supporting National Accounts management
- Providing fleet management services, if needed
- Providing emergency service and parts
- Providing rental trucks at short notice
- Helping determine exactly when to purchase new lift trucks
The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Hyster supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at www.gsaadvantage.gov
Hyster Tire Handler Trucks
HYSTER TIRE HANDLING SOLUTIONS FOR MINING, PORT AND INTERMODAL APPLICATIONS
Hyster® Tire Handler trucks are engineered to help provide fast and cost effective changing of heavy duty large truck tires. For mine operators, maximum uptime of the mining equipment is crucial. Hyster tire handlers are designed for excellent all-around visibility, controllability and maneuverability to facilitate efficient tire removal and replacement services the first time around, keeping the haul truck running.
Featuring a true “plug-and-play” system, Hyster tire handlers are easily installed and assembled on-site. In addition, mines can choose from either a dedicated Hyster Tire Handler or a dual function truck that can quickly disconnect the handling attachment for use as a Hyster Forklift, reducing the number of service vehicles in the mining fleet which can lower operating cost.
MANAGE YOUR BIG ASSETS
LEVEL 1 TELEMETRY STANDARD ON BIG TRUCKS
Help promote safety & operator confidence, regulatory compliance, and improve operational transparency. Our cloud-based wireless monitoring provides actionable insights giving you a thorough look into your fleet’s day-to-day operations so your team can work smarter. And it's standard on Hyster high capacity ICE forklifts and container handlers and reach stackers.
The truck is only part of the solution
Hyster knows that a tough truck, is even better when it comes with a strong partner to meet your unique needs.
